Studio-Frontend: Developing Frontend Separate from edX Platform
At the core of edX is the edx-platform, a monolithic Django code-base 2.7 times the size of Django itself.
35% of the edx-platform is JavaScript. While it has served edX well since its inception in 2012, reaching over 11 million learners in thousands of courses on edX.org and many more millions on all of the Open edX instances across the world, it is starting to show its age. Most of it comes in the form of Backbone.js apps loaded by RequireJS in Django Mako templates, with jQuery peppered throughout.
Many valiant efforts are underway to modernize the frontend of edx-platform including replacing RequireJS with Webpack, Backbone.js with React, and ES5 JavaScript and CoffeeScript with ES6 JavaScript. Many of these efforts were covered in detail at the last Open edX conference and in Open edX Proposal 11: Front End Technology Standards. However, the size and complexity of the edx-platform means that these kind of efforts are hard to prioritize, and, in the meantime, frontend developers are forced to wait over 10 minutes for our home-grown asset pipeline to build before they can view changes.
There have also been efforts to incrementally modularize and extract parts of the edx-platform into separate python packages that could be installed as Django apps, or even as separately deployed microservices. This allows developers to work independently from the rest of the organization inside of a repository that they own, manage, and is small enough that they could feasibly understand it entirely.
When my team was tasked with improving the user experience of pages in Studio, the tool that course authors use to create course content, we opted to take a similar architectural approach with the frontend and create a new repository where we could develop new pages in isolation and then integrate them back into the edx-platform as a plugin. We named this new independent repository studio-frontend. With this approach, our team owns the entire studio-frontend code-base and can make the best architectural changes required for its features without having to consult with and contend with all of the other teams at edX that contribute to the edx-platform. Developers of studio-frontend can also avoid the platform’s slow asset pipeline by doing all development within the studio-frontend repository and then later integrating the changes into platform.
React and Paragon
When edX recently started to conform our platform to the Web Content Accessibility Guidelines 2.0 AA (WCAG 2.0 AA), we faced many challenges in retrofitting our existing frontend code to be accessible. Rebuilding Studio pages from scratch in studio-frontend allows us to not only follow the latest industry standards for building robust and performant frontend applications, but to also build with accessibility in mind from the beginning.
The Javascript community has made great strides recently to address accessibility issues in modern web apps. However, we had trouble finding an open-source React component library that fully conformed to WCAG 2.0 AA and met all of edX’s needs, so we decided to build our own: Paragon.

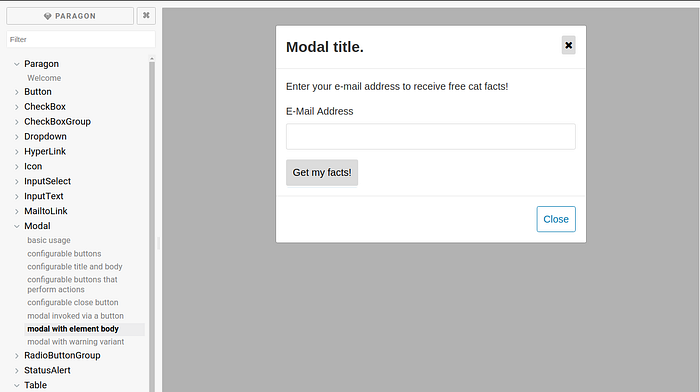

Paragon is a library of building-block components like buttons, inputs, icons, and tables which were built from scratch in React to be accessible. The components are styled using the Open edX theme of Bootstrap v4 (edX’s decision to adopt Bootstrap is covered in OEP-16). Users of Paragon may also choose to use the themeable unstyled target and provide their own Bootstrap theme.

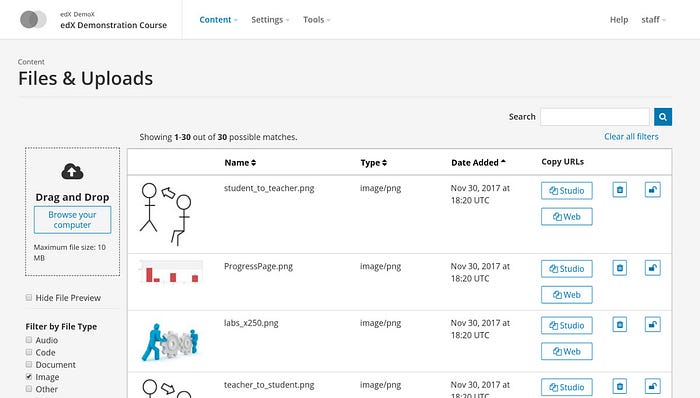

Studio-frontend composes together Paragon components into higher-level components like an accessibility form or a table for course assets with searching, filtering, sorting, pagination, and upload. While we developed these components in studio-frontend, we were able to improve the base Paragon components. Other teams at edX using the same components were able to receive the same improvements with a single package update.
Integration with Studio
We were able to follow the typical best practices for developing a React/Redux application inside studio-frontend, but at the end of the day, we still had to somehow get our components inside of existing Studio pages and this is where most of the challenges arose.
Webpack
The aforementioned move from RequireJS to Webpack in the edx-platform made it possible for us to build our studio-frontend components from source with Webpack within edx-platform. However, this approach tied us to the edx-platform’s slow asset pipeline. If we wanted rapid development, we had to duplicate the necessary Webpack config between both studio-frontend and edx-platform.
Instead, studio-frontend handles building the development and production Webpack builds itself. In development mode, the incremental rebuild that happens automatically when a file is changed takes under a second. The production JavaScript and CSS bundles, which take about 25 seconds to build, are published with every new release to NPM. The edx-platform npm installs studio-frontend and then copies the built production files from node_modules into its Django static files directory where the rest of the asset pipeline will pick it up.
To actually use the built JavaScript and CSS, edx-platform still needs to include it in its Mako templates. We made a Mako template tag that takes a Webpack entry point name in studio-frontend and generates script tags that include the necessary files from the studio-frontend package. It also dumps all of the initial context that studio-frontend needs from the edx-platform Django app into a JSON object in a script tag on the page that studio-frontend components can access via a shared id. This is how studio-frontend components get initial data from Studio, like which course it’s embedded in.
For performance, modules that are shared across all studio-frontend components are extracted into common.min.js and common.min.css files that are included on every Studio template that has a studio-frontend component. User's browsers should cache these files so that they do not have to re-download libraries like React and Redux every time they visit a new page that contains a studio-frontend component.
CSS Isolation

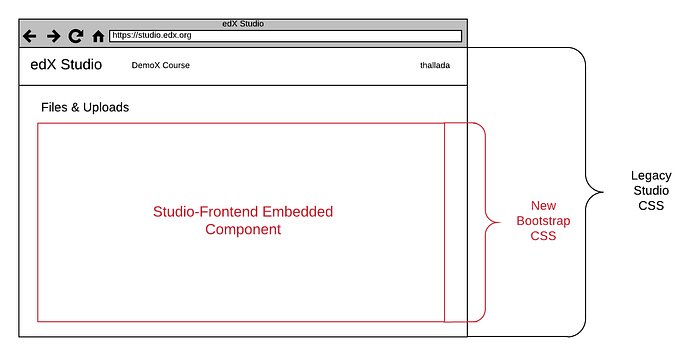

Since the move to Bootstrap had not yet reached the Studio part of the edx-platform, most of the styling clashed with the Bootstrap CSS that studio-frontend components introduced. And, the Bootstrap styles were also leaking outside of the studio-frontend embedded component div and affecting the rest of the Studio page around it.
We were able to prevent styles leaking outside of the studio-frontend component by scoping all CSS to only the div that wraps the component. Thanks to the Webpack postcss-loader and the postcss-prepend-selector we were able to automatically scope all of our CSS selectors to that div in our build process.
Preventing the Studio styles from affecting our studio-frontend component was a much harder problem because it means avoiding the inherently cascading nature of CSS. A common solution to this issue is to place the 3rd-party component inside of an iframe element, which essentially creates a completely separate sub-page where both CSS and JavaScript are isolated from the containing page. Because iframes introduce many other performance and styling issues, we wanted to find a different solution to isolating CSS.
The CSS style all: initial allows resetting all properties on an element to their initial values as defined in the CSS spec. Placing this style under a wildcard selector in studio-frontend allowed us to reset all inherited props from the legacy Studio styles without having to enumerate them all by hand.
While this CSS property doesn’t have broad browser support yet, we were able to polyfill it thanks to postcss with the postcss-initial plugin.
However, this resets the styles to nothing. For example, all divs are displayed inline. To return the styles back to to some sane browser default we had to re-apply a browser default stylesheet. You can read more about this technique at default-stylesheet.
From there, Bootstrap’s reboot normalizes the browser-specific styling to a common baseline and then applies the Bootstrap styles conflict-free from the surrounding CSS cascade.
There’s a candidate recommendation in CSS for a contains property, which will “allow strong, predictable isolation of a subtree from the rest of the page”. I hope that it will provide a much more elegant solution to this problem once browsers support it.
Internationalization
Another major challenge with separating out the frontend from edx-platform was that most of our internationalization tooling was instrumented inside the edx-platform. So, in order to display text in studio-frontend components in the correct language we either had to pass already-translated strings from the edx-platform into studio-frontend, or set-up translations inside studio-frontend.
We opted for the latter because it kept the content close to the code that used it. Every display string in a component is stored in a displayMessages.jsx file and then imported and referenced by an id within the component. A periodic job extracts these strings from the project, pushes them up to our translations service Transifex, and pulls any new translations to store them in our NPM package.
Because Transifex’s KEYVALUEJSON file format does not allow for including comments in the strings for translation, Eric created a library called reactifex that will send the comments in separate API calls.
Studio includes the user’s language in the context that it sends a studio-frontend component for initialization. Using this, the component can display the message for that language if it exists. If it does not, then it will display the original message in English and wrap it in a span with lang="en" as an attribute so that screen-readers know to read it in English even if their default is some other language.
Read more about studio-frontend’s internationalization process in the documentation that Eric wrote.
Developing with Docker
To normalize the development environment across the whole studio-frontend team, development is done in a Docker container. This is a minimal Ubuntu 16.04 container with specific version of Node 8 installed and its only purpose is to run Webpack. This follows the pattern established in OEP-5: Pre-built Development Environments for running a single Docker container per process that developers can easily start without installing dependencies.
Similar to edX’s devstack there is a Makefile with commands to start and stop the docker container. The docker container then immediately runs npm run start, which runs Webpack with the webpack-dev-server. The webpack-dev-server is a node server that serves assets built by Webpack. Studio-frontend's Webpack config makes this server available to the developer's host machine at http://localhost:18011.
With hot-reload enabled, developers can now visit that URL in their browser, edit source files in studio-frontend, and then see changes reflected instantly in their browser once Webpack finishes its incremental rebuild.

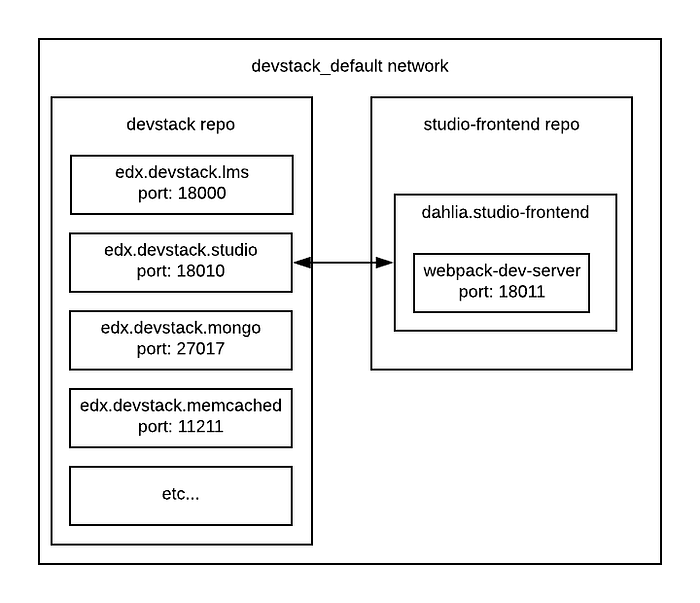

However, many studio-frontend components need to be able to talk to the edx-platform Studio backend Django server. Using docker’s network connect feature the studio-frontend container can join the developer’s existing docker devstack network so that the studio-frontend container can make requests to the docker devstack Studio container at http://edx.devstack.studio:18010/ and Studio can access studio-frontend at http://dahlia.studio-fronend:18011/.
The webpack-dev-server can now proxy all requests to Studio API endpoints (like http://localhost:18011/assets) to http://edx.devstack.studio:18010/.
Developing within Docker Devstack Studio
Since studio-frontend components will be embedded inside of an existing Studio page shell, it’s often useful to develop on studio-frontend containers inside of this set-up. This can be done by setting a variable in the devstack’s cms/envs/private.py:
This setting is checked in the Studio Mako templates wherever studio-frontend components are embedded. If it is set to a value other than None, then the templates will request assets from that URL instead of the Studio's own static assets directory. When a developer loads a Studio page with an embedded studio-frontend component, their studio-frontend webpack-dev-server will be requested at that URL. Similarly to developing on studio-frontend in isolation, edits to source files will trigger a Webpack compilation and the Studio page will be hot-reloaded or reloaded to reflect the changes automatically.
Since the studio-frontend JS loaded on localhost:18010 is now requesting the webpack-dev-server on localhost:18011, an Access-Control-Allow-Origin header has to be configured on the webpack-dev-server to get around CORS violations.
Deploying to Production
Each release of studio-frontend will upload the /dist files built by Webpack in production mode to NPM. edx-platform requires a particular version of studio-frontend in its package.json. When a new release of edx-platform is made, paver update_assets will run which will copy all of the files in the node_modules/@edx/studio-frontend/dist/ to the Studio static folder. Because STUDIO_FRONTEND_CONTAINER_URL will be None in production, it will be ignored, and Studio pages will request studio-frontend assets from that static folder.
Future
Instead of “bringing the new into the old”, we’d eventually like to move to a model where we “work in the new and bring in the old if necessary”. We could host studio-frontend statically on a completely separate server which talks to Studio via a REST (or GraphQL) API. This approach would eliminate the complexity around CSS isolation and bring big performance wins for our users, but it would require us to rewrite more of Studio.
